FA77減速機重量：FA77減速機重量89公斤，F(xiàn)A77減速機與電機重量分別如下

FA77減速機與0.37KW電機重量99.5公斤，F(xiàn)A77減速機與0.55KW電機重量104公斤，F(xiàn)A77減速機與0.75KW電機重量105公斤，F(xiàn)A77減速機與1.1KW電機重量109公斤，F(xiàn)A77減速機與1.5KW電機重量112公斤，F(xiàn)A77減速機與2.2KW電機重量121公斤，F(xiàn)A77減速機與3KW電機重量123公斤，F(xiàn)A77減速機與4KW電機重量135公斤，F(xiàn)A77減速機與5.5KW電機重量149公斤，F(xiàn)A77減速機與7.5KW電機重量162公斤，F(xiàn)A77減速機與11KW電機重量204公斤。

FA77減速機加油量：可加齒輪油

FA77減速機M3方式安裝加4.3L，F(xiàn)A77減速機M2方式安裝加7.3L，F(xiàn)A77減速機M1方式安裝加5.9L，F(xiàn)A77減速機M4方式安裝加8L，F(xiàn)A77減速機M5方式安裝加6L，F(xiàn)A77減速機M6方式安裝加6.3L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整方式安裝時,您必須根據改變后的方式安裝相應調整加注潤滑劑。上述中列出了方式安裝M1-M6的減速機相應的標準參考潤滑油注入量值。剎車電機減速機

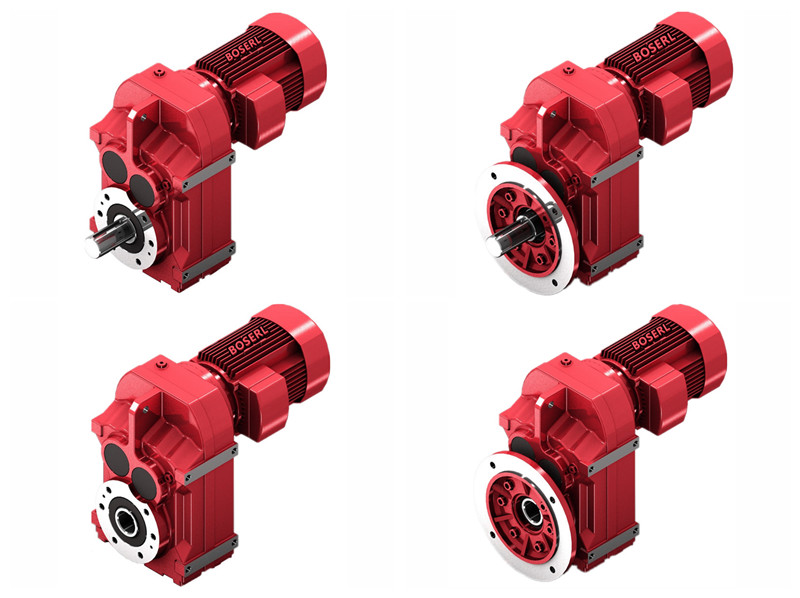

FA77減速機實物圖：圖一為FA77臥式孔輸出平行軸減速機，圖二F77底腳安裝方式軸輸出平行軸減速機，圖三為FF77立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FAF77立式法蘭孔輸出平行軸斜齒輪減速機。

FA77減速機型號表示方法：

FA77減速機型號結構FA77-B4KW-4P-減速比-方式安裝-接線盒位置。

FA77減速機性能參數表結構說明：HR手動釋放裝置，HF手動釋放裝置與自鎖功能，F(xiàn)A77，F(xiàn)77，F(xiàn)F77，F(xiàn)AF77減速機機座號，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FA77減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝方式，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。分體減速機電機

FA77減速機參數：

FA77減速機減速比1:281，1:262，1:225，1:198，1:188，1:166，1:142，1:130，1:114，1:108，1:94，1:85，1:75，1:72，1:66，1:58，1:55，1:48，1:43，1:38，1:33，1:30，1:25，1:36，1:31，1:28，1:25，1:21，1:19，1:17，1:15，1:14，1:12，1:10，1:9，1:8，1:7，1:6，1:5，1:4

FA77減速機輸出轉數5轉，6轉，7轉，8轉，9轉，11轉，12轉，13轉，15轉，16轉，19轉，21轉，24轉，25轉，29轉，32轉，37轉，41轉，47轉，55轉，38轉，44轉，49轉，55轉，65轉，71轉，80轉，90轉，100轉，115轉，128轉，151轉，169轉，189轉，211轉，243轉，271轉，327轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FA77減速機電機可與直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FA77與0.12KW，F(xiàn)A77與0.18KW，F(xiàn)A77與0.25KW，F(xiàn)A77與0.37KW，F(xiàn)A77與0.55KW，F(xiàn)A77與0.75KW，F(xiàn)A77與1.1KW，F(xiàn)A77與1.5KW，F(xiàn)A77與2.2KW，F(xiàn)A77與3KW，F(xiàn)A77與4KW，F(xiàn)A77與5.5KW，F(xiàn)A77與7.5KW，F(xiàn)A77與11KW。

FA77減速機輸出扭矩1500N.m，1450N.m，1110N.m，1380N.m，1430N.m，1080N.m，1010N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FA77減速機安裝尺寸：高431*寬270*長294

FA77減速機型號：

FA77AQA80,FA77AQA100,FA77AQA115,FA77AQA140,FA77AQA160,FA77AQA190,FA77AQH80,FA77AQH100,FA77AQH115,FA77AQH140,FA77AQH160,FA77AQH190,JRTFA77-Y0.18KW,JRTFA77-Y0.25KW,JRTFA77-Y0.37KW,JRTFA77-Y0.55KW,JRTFA77-Y0.75KW,JRTFA77-Y1.1KW,JRTFA77-Y1.5KW,JRTFA77-Y100M4,JRTFA77-Y112M4,JRTFA77-Y11KW,JRTFA77-Y132M4,JRTFA77-Y160M4,JRTFA77-Y2.2KW,JRTFA77-Y3KW,JRTFA77-Y4KW,JRTFA77-Y5.5KW,JRTFA77-Y63M4,JRTFA77-Y7.5KW,JRTFA77-Y71M4,JRTFA77-Y80M4,JRTFA77-Y90M4,JRTFA77-YEJ100M4,JRTFA77-YEJ112M4,JRTFA77-YEJ132M4,JRTFA77-YEJ160M4,JRTFA77-YEJ63M4,JRTFA77-YEJ71M4,JRTFA77-YEJ80M4,JRTFA77-YEJ90M4,JRTFA77-YS100M4,JRTFA77-YS112M4,JRTFA77-YS132M4,JRTFA77-YS160M4,JRTFA77-YS63M4,JRTFA77-YS71M4,JRTFA77-YS80M4,JRTFA77-YS90M4,JRTFA77-YVP100M4,JRTFA77-YVP112M4,JRTFA77-YVP132M4,JRTFA77-YVP160M4,JRTFA77-YVP63M4,JRTFA77-YVP71M4,JRTFA77-YVP80M4,JRTFA77-YVP90M4,JRTFA77-YVPEJ100M4,JRTFA77-YVPEJ112M4,JRTFA77-YVPEJ132M4,JRTFA77-YVPEJ160M4,JRTFA77-YVPEJ63M4,JRTFA77-YVPEJ71M4,JRTFA77-YVPEJ80M4,JRTFA77-YVPEJ90M4,EWFA77-Y0.18KW,EWFA77-Y0.25KW,EWFA77-Y0.37KW,EWFA77-Y0.55KW,EWFA77-Y0.75KW,EWFA77-Y1.1KW,EWFA77-Y1.5KW,EWFA77-Y100M4,EWFA77-Y112M4,EWFA77-Y11KW,EWFA77-Y132M4,EWFA77-Y160M4,EWFA77-Y2.2KW,EWFA77-Y3KW,EWFA77-Y4KW,EWFA77-Y5.5KW,EWFA77-Y63M4,EWFA77-Y7.5KW,EWFA77-Y71M4,EWFA77-Y80M4,EWFA77-Y90M4,EWFA77-YEJ100M4,EWFA77-YEJ112M4,EWFA77-YEJ132M4,EWFA77-YEJ160M4,EWFA77-YEJ63M4,EWFA77-YEJ71M4,EWFA77-YEJ80M4,EWFA77-YEJ90M4,EWFA77-YS100M4,EWFA77-YS112M4,EWFA77-YS132M4,EWFA77-YS160M4,EWFA77-YS63M4,EWFA77-YS71M4,EWFA77-YS80M4,EWFA77-YS90M4,EWFA77-YVP100M4,EWFA77-YVP112M4,EWFA77-YVP132M4,EWFA77-YVP160M4,EWFA77-YVP63M4,EWFA77-YVP71M4,EWFA77-YVP80M4,EWFA77-YVP90M4,EWFA77-YVPEJ100M4,EWFA77-YVPEJ112M4,EWFA77-YVPEJ132M4,EWFA77-YVPEJ160M4,EWFA77-YVPEJ63M4,EWFA77-YVPEJ71M4,EWFA77-YVPEJ80M4,EWFA77-YVPEJ90M4,SLFA77-Y0.18KW,SLFA77-Y0.25KW,SLFA77-Y0.37KW,SLFA77-Y0.55KW,SLFA77-Y0.75KW,SLFA77-Y1.1KW,SLFA77-Y1.5KW,SLFA77-Y100M4,SLFA77-Y112M4,SLFA77-Y11KW,SLFA77-Y132M4,SLFA77-Y160M4,SLFA77-Y2.2KW,SLFA77-Y3KW,SLFA77-Y4KW,SLFA77-Y5.5KW,SLFA77-Y63M4,SLFA77-Y7.5KW,SLFA77-Y71M4,SLFA77-Y80M4,SLFA77-Y90M4,SLFA77-YEJ100M4,SLFA77-YEJ112M4,SLFA77-YEJ132M4,SLFA77-YEJ160M4,SLFA77-YEJ63M4,SLFA77-YEJ71M4,SLFA77-YEJ80M4,SLFA77-YEJ90M4,SLFA77-YS100M4,SLFA77-YS112M4,SLFA77-YS132M4,SLFA77-YS160M4,SLFA77-YS63M4,SLFA77-YS71M4,SLFA77-YS80M4,SLFA77-YS90M4,SLFA77-YVP100M4,SLFA77-YVP112M4,SLFA77-YVP132M4,SLFA77-YVP160M4,SLFA77-YVP63M4,SLFA77-YVP71M4,SLFA77-YVP80M4,SLFA77-YVP90M4,SLFA77-YVPEJ100M4,SLFA77-YVPEJ112M4,SLFA77-YVPEJ132M4,SLFA77-YVPEJ160M4,SLFA77-YVPEJ63M4,SLFA77-YVPEJ71M4,SLFA77-YVPEJ80M4,SLFA77-YVPEJ90M4,DSZFA77-Y0.18KW,DSZFA77-Y0.25KW,DSZFA77-Y0.37KW,DSZFA77-Y0.55KW,DSZFA77-Y0.75KW,DSZFA77-Y1.1KW,DSZFA77-Y1.5KW,DSZFA77-Y100M4,DSZFA77-Y112M4,DSZFA77-Y11KW,DSZFA77-Y132M4,DSZFA77-Y160M4,DSZFA77-Y2.2KW,DSZFA77-Y3KW,DSZFA77-Y4KW,DSZFA77-Y5.5KW,DSZFA77-Y63M4,DSZFA77-Y7.5KW,DSZFA77-Y71M4,DSZFA77-Y80M4,DSZFA77-Y90M4,DSZFA77-YEJ100M4,DSZFA77-YEJ112M4,DSZFA77-YEJ132M4,DSZFA77-YEJ160M4,DSZFA77-YEJ63M4,DSZFA77-YEJ71M4,DSZFA77-YEJ80M4,DSZFA77-YEJ90M4,DSZFA77-YS100M4,DSZFA77-YS112M4,DSZFA77-YS132M4,DSZFA77-YS160M4,DSZFA77-YS63M4,DSZFA77-YS71M4,DSZFA77-YS80M4,DSZFA77-YS90M4,DSZFA77-YVP100M4,DSZFA77-YVP112M4,DSZFA77-YVP132M4,DSZFA77-YVP160M4,DSZFA77-YVP63M4,DSZFA77-YVP71M4,DSZFA77-YVP80M4,DSZFA77-YVP90M4,DSZFA77-YVPEJ100M4,DSZFA77-YVPEJ112M4,DSZFA77-YVPEJ132M4,DSZFA77-YVPEJ160M4,DSZFA77-YVPEJ63M4,DSZFA77-YVPEJ71M4,DSZFA77-YVPEJ80M4,DSZFA77-YVPEJ90M4,BFA77-Y0.18KW,BFA77-Y0.25KW,BFA77-Y0.37KW,BFA77-Y0.55KW,BFA77-Y0.75KW,BFA77-Y1.1KW,BFA77-Y1.5KW,BFA77-Y100M4,BFA77-Y112M4,BFA77-Y11KW,BFA77-Y132M4,BFA77-Y160M4,BFA77-Y2.2KW,BFA77-Y3KW,BFA77-Y4KW,BFA77-Y5.5KW,BFA77-Y63M4,BFA77-Y7.5KW,BFA77-Y71M4,BFA77-Y80M4,BFA77-Y90M4,BFA77-YEJ100M4,BFA77-YEJ112M4,BFA77-YEJ132M4,BFA77-YEJ160M4,BFA77-YEJ63M4,BFA77-YEJ71M4,BFA77-YEJ80M4,BFA77-YEJ90M4,BFA77-YS100M4,BFA77-YS112M4,BFA77-YS132M4,BFA77-YS160M4,BFA77-YS63M4,BFA77-YS71M4,BFA77-YS80M4,BFA77-YS90M4,BFA77-YVP100M4,BFA77-YVP112M4,BFA77-YVP132M4,BFA77-YVP160M4,BFA77-YVP63M4,BFA77-YVP71M4,BFA77-YVP80M4,BFA77-YVP90M4,BFA77-YVPEJ100M4,BFA77-YVPEJ112M4,BFA77-YVPEJ132M4,BFA77-YVPEJ160M4,BFA77-YVPEJ63M4,BFA77-YVPEJ71M4,BFA77-YVPEJ80M4,BFA77-YVPEJ90M4,GFA77-Y0.18KW,GFA77-Y0.25KW,GFA77-Y0.37KW,GFA77-Y0.55KW,GFA77-Y0.75KW,GFA77-Y1.1KW,GFA77-Y1.5KW,GFA77-Y100M4,GFA77-Y112M4,GFA77-Y11KW,GFA77-Y132M4,GFA77-Y160M4,GFA77-Y2.2KW,GFA77-Y3KW,GFA77-Y4KW,GFA77-Y5.5KW,GFA77-Y63M4,GFA77-Y7.5KW,GFA77-Y71M4,GFA77-Y80M4,GFA77-Y90M4,GFA77-YEJ100M4,GFA77-YEJ112M4,GFA77-YEJ132M4,GFA77-YEJ160M4,GFA77-YEJ63M4,GFA77-YEJ71M4,GFA77-YEJ80M4,GFA77-YEJ90M4,GFA77-YS100M4,GFA77-YS112M4,GFA77-YS132M4,GFA77-YS160M4,GFA77-YS63M4,GFA77-YS71M4,GFA77-YS80M4,GFA77-YS90M4,GFA77-YVP100M4,GFA77-YVP112M4,GFA77-YVP132M4,GFA77-YVP160M4,GFA77-YVP63M4,GFA77-YVP71M4,GFA77-YVP80M4,GFA77-YVP90M4,GFA77-YVPEJ100M4,GFA77-YVPEJ112M4,GFA77-YVPEJ132M4,GFA77-YVPEJ160M4,GFA77-YVPEJ63M4,GFA77-YVPEJ71M4,GFA77-YVPEJ80M4,GFA77-YVPEJ90M4,FCA77-Y0.18KW,FCA77-Y0.25KW,FCA77-Y0.37KW,FCA77-Y0.55KW,FCA77-Y0.75KW,FCA77-Y1.1KW,FCA77-Y1.5KW,FCA77-Y100M4,FCA77-Y112M4,FCA77-Y11KW,FCA77-Y132M4,FCA77-Y160M4,FCA77-Y2.2KW,FCA77-Y3KW,FCA77-Y4KW,FCA77-Y5.5KW,FCA77-Y63M4,FCA77-Y7.5KW,FCA77-Y71M4,FCA77-Y80M4,FCA77-Y90M4,FCA77-YEJ100M4,FCA77-YEJ112M4,FCA77-YEJ132M4,FCA77-YEJ160M4,FCA77-YEJ63M4,FCA77-YEJ71M4,FCA77-YEJ80M4,FCA77-YEJ90M4,FCA77-YS100M4,FCA77-YS112M4,FCA77-YS132M4,FCA77-YS160M4,FCA77-YS63M4,FCA77-YS71M4,FCA77-YS80M4,FCA77-YS90M4,FCA77-YVP100M4,FCA77-YVP112M4,FCA77-YVP132M4,FCA77-YVP160M4,FCA77-YVP63M4,FCA77-YVP71M4,FCA77-YVP80M4,FCA77-YVP90M4,FCA77-YVPEJ100M4,FCA77-YVPEJ112M4,FCA77-YVPEJ132M4,FCA77-YVPEJ160M4,FCA77-YVPEJ63M4,FCA77-YVPEJ71M4,FCA77-YVPEJ80M4,FCA77-YVPEJ90M4,MTPA77-Y0.18KW,MTPA77-Y0.25KW,MTPA77-Y0.37KW,MTPA77-Y0.55KW,MTPA77-Y0.75KW,MTPA77-Y1.1KW,MTPA77-Y1.5KW,MTPA77-Y100M4,MTPA77-Y112M4,MTPA77-Y11KW,MTPA77-Y132M4,MTPA77-Y160M4,MTPA77-Y2.2KW,MTPA77-Y3KW,MTPA77-Y4KW,MTPA77-Y5.5KW,MTPA77-Y63M4,MTPA77-Y7.5KW,MTPA77-Y71M4,MTPA77-Y80M4,MTPA77-Y90M4,MTPA77-YEJ100M4,MTPA77-YEJ112M4,MTPA77-YEJ132M4,MTPA77-YEJ160M4,MTPA77-YEJ63M4,MTPA77-YEJ71M4,MTPA77-YEJ80M4,MTPA77-YEJ90M4,MTPA77-YS100M4,MTPA77-YS112M4,MTPA77-YS132M4,MTPA77-YS160M4,MTPA77-YS63M4,MTPA77-YS71M4,MTPA77-YS80M4,MTPA77-YS90M4,MTPA77-YVP100M4,MTPA77-YVP112M4,MTPA77-YVP132M4,MTPA77-YVP160M4,MTPA77-YVP63M4,MTPA77-YVP71M4,MTPA77-YVP80M4,MTPA77-YVP90M4,MTPA77-YVPEJ100M4,MTPA77-YVPEJ112M4,MTPA77-YVPEJ132M4,MTPA77-YVPEJ160M4,MTPA77-YVPEJ63M4,MTPA77-YVPEJ71M4,MTPA77-YVPEJ80M4,MTPA77-YVPEJ90M4,WXFA77-WSS0.18KW,WXFA77-WSS0.25KW,WXFA77-WSS0.37KW,WXFA77-WSS0.55KW,WXFA77-WSS0.75KW,WXFA77-WSS1.1KW,WXFA77-WSS1.5KW,WXFA77-WSS100M4,WXFA77-WSS112M4,WXFA77-WSS11KW,WXFA77-WSS132M4,WXFA77-WSS160M4,WXFA77-WSS2.2KW,WXFA77-WSS3KW,WXFA77-WSS4KW,WXFA77-WSS5.5KW,WXFA77-WSS63M4,WXFA77-WSS7.5KW,WXFA77-WSS71M4,WXFA77-WSS80M4,WXFA77-WSS90M4,WXFA77-WSSB100M4,WXFA77-WSSB112M4,WXFA77-WSSB132M4,WXFA77-WSSB160M4,WXFA77-WSSB63M4,WXFA77-WSSB71M4,WXFA77-WSSB80M4,WXFA77-WSSB90M4,WXFA77-WSSVP100M4,WXFA77-WSSVP112M4,WXFA77-WSSVP132M4,WXFA77-WSSVP160M4,WXFA77-WSSVP63M4,WXFA77-WSSVP71M4,WXFA77-WSSVP80M4,WXFA77-WSSVP90M4,WXFA77-WSSVPB100M4,WXFA77-WSSVPB112M4,WXFA77-WSSVPB132M4,WXFA77-WSSVPB160M4,WXFA77-WSSVPB63M4,WXFA77-WSSVPB71M4,WXFA77-WSSVPB80M4,WXFA77-WSSVPB90M4。
