FAF57減速機加電機重量：

FAF57減速機加0.12KW電機重量42.5KG，F(xiàn)AF57減速機加0.18KW電機重量43KG，F(xiàn)AF57減速機加0.25KW電機重量47KG，F(xiàn)AF57減速機加0.37KW電機重量47.5KG，F(xiàn)AF57減速機加0.55KW電機重量52KG，F(xiàn)AF57減速機加0.75KW電機重量53KG，F(xiàn)AF57減速機加1.1KW電機重量57KG，F(xiàn)AF57減速機加1.5KW電機重量60KG，F(xiàn)AF57減速機加2.2KW電機重量69KG，F(xiàn)AF57減速機加3KW電機重量72KG，F(xiàn)AF57減速機加4KW電機重量83KG，F(xiàn)AF57減速機加5.5KW電機重量97KG。變頻電機減速機

FAF57減速機加油量：可加齒輪潤滑油

FAF57減速機M4安裝形式加3.4升，F(xiàn)AF57減速機M3安裝形式加2.1升，F(xiàn)AF57減速機M2安裝形式加3.5升，F(xiàn)AF57減速機M1安裝形式加2.8L，F(xiàn)AF57減速機M5安裝形式加2.9升，F(xiàn)AF57減速機M6安裝形式加3升。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時,您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

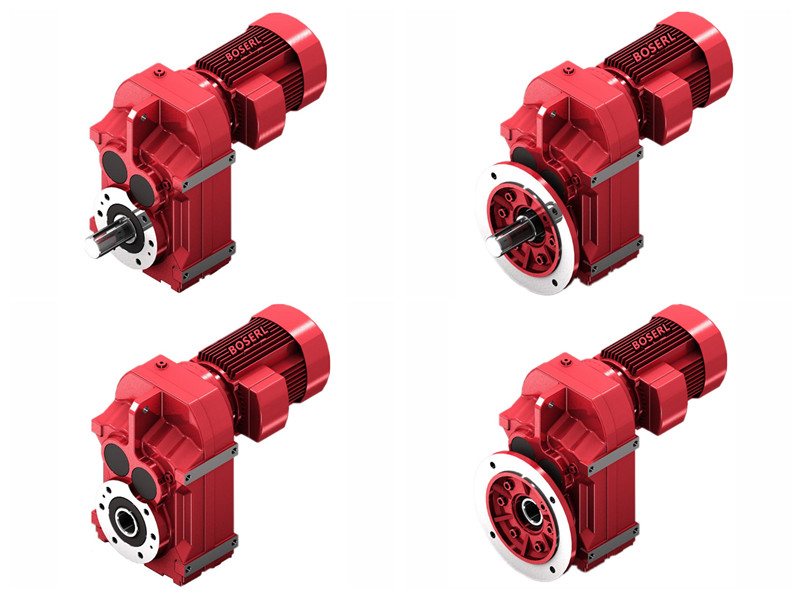

FAF57減速機實物圖：圖一為FAF57立式法蘭孔輸出平行軸斜齒輪減速機，圖二F57底腳安裝形式軸輸出平行軸減速機，圖三為FF57立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FA57臥式孔輸出平行軸斜齒輪減速機。

FAF57減速機型號表示方法：

FAF57減速機型號結構FAF57-B1.1KW-4P-減速比-安裝形式-接線盒位置。

FAF57減速機性能參數表結構說明：TF電機熱保護裝置，HR手動釋放裝置，HF手動釋放裝置加自鎖功能，F(xiàn)AF57、F57、FF57、FA57減速機機座號，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FAF57減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。齒輪減速機

FAF57減速機參數：

FAF57減速機輸出扭矩600N.m，590N.m，290N.m，500N.m，545N.m，535N.m，575N.m，420N.m，415N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FAF57減速機減速比199比，183比，157比，136比，127比，110比，93比，83比，72比，68比，58比，50比，44比，38比，35比，30比，40比，34比，29比，28比，24比，21比，19比，16比，15比，13比，12比，10比，9比，7比，6比，5比

FAF57減速機輸出轉數270rpm/min，7rpm/min，8rpm/min，9rpm/min，10rpm/min，11rpm/min，13rpm/min，15rpm/min，17rpm/min，19rpm/min，21rpm/min，24rpm/min，28rpm/min，31rpm/min，37rpm/min，39rpm/min，46rpm/min，35rpm/min，41rpm/min，47rpm/min，49rpm/min，56rpm/min，66rpm/min，73rpm/min，83rpm/min，88rpm/min，104rpm/min，114rpm/min，132rpm/min，150rpm/min，171rpm/min，181rpm/min，213rpm/min，234rpm/min。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FAF57減速機電機可加直流、變頻、剎車、防爆、伺服、交流、三相、單相電機FAF57加0.12KW，F(xiàn)AF57加0.18KW，F(xiàn)AF57加0.25KW，F(xiàn)AF57加0.37KW，F(xiàn)AF57加0.55KW，F(xiàn)AF57加0.75KW，F(xiàn)AF57加1.1KW，F(xiàn)AF57加1.5KW，F(xiàn)AF57加2.2KW，F(xiàn)AF57加3KW，F(xiàn)AF57加4KW，F(xiàn)AF57加5.5KW。

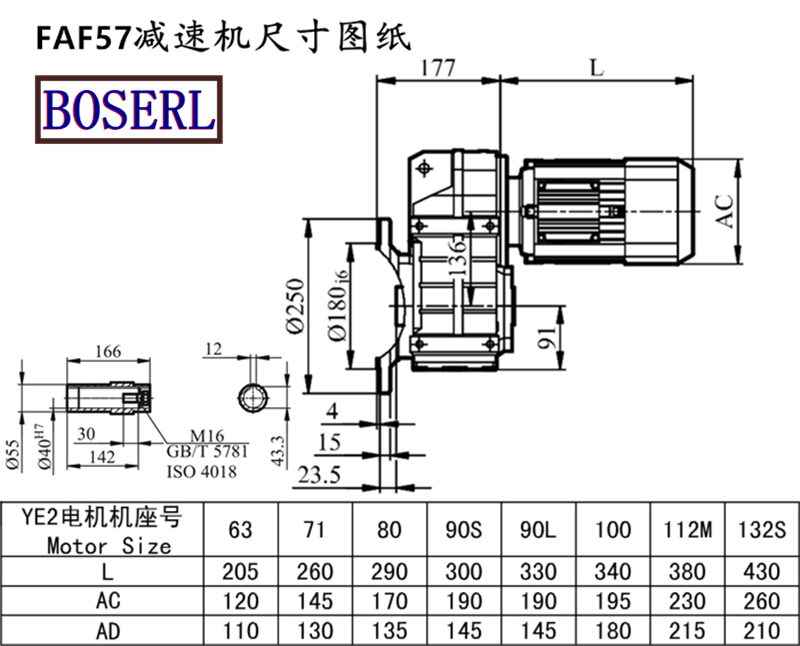

FAF57減速機外觀尺寸：輸出孔直徑Φ40+鍵3.3（可定做），高315*寬200*長177（帶法蘭）

FAF57減速機型號：FAF57AQA80,FAF57AQA100,FAF57AQA115,FAF57AQA140,FAF57AQA160,FAF57AQA190,FAF57AQH80,FAF57AQH100,FAF57AQH115,FAF57AQH140,FAF57AQH160,FAF57AQH190,JRTFAF57-Y0.12KW,JRTFAF57-Y0.18KW,JRTFAF57-Y0.25KW,JRTFAF57-Y0.37KW,JRTFAF57-Y0.55KW,JRTFAF57-Y0.75KW,JRTFAF57-Y1.1KW,JRTFAF57-Y1.5KW,JRTFAF57-Y100M4,JRTFAF57-Y112M4,JRTFAF57-Y132M4,JRTFAF57-Y2.2KW,JRTFAF57-Y3KW,JRTFAF57-Y4KW,JRTFAF57-Y5.5KW,JRTFAF57-Y63M4,JRTFAF57-Y71M4,JRTFAF57-Y80M4,JRTFAF57-Y90M4,JRTFAF57-YEJ100M4,JRTFAF57-YEJ112M4,JRTFAF57-YEJ132M4,JRTFAF57-YEJ63M4,JRTFAF57-YEJ71M4,JRTFAF57-YEJ80M4,JRTFAF57-YEJ90M4,JRTFAF57-YS100M4,JRTFAF57-YS112M4,JRTFAF57-YS132M4,JRTFAF57-YS63M4,JRTFAF57-YS71M4,JRTFAF57-YS80M4,JRTFAF57-YS90M4,JRTFAF57-YVP100M4,JRTFAF57-YVP112M4,JRTFAF57-YVP132M4,JRTFAF57-YVP63M4,JRTFAF57-YVP71M4,JRTFAF57-YVP80M4,JRTFAF57-YVP90M4,JRTFAF57-YVPEJ100M4,JRTFAF57-YVPEJ112M4,JRTFAF57-YVPEJ132M4,JRTFAF57-YVPEJ63M4,JRTFAF57-YVPEJ71M4,JRTFAF57-YVPEJ80M4,JRTFAF57-YVPEJ90M4,EWFAF57-Y0.12KW,EWFAF57-Y0.18KW,EWFAF57-Y0.25KW,EWFAF57-Y0.37KW,EWFAF57-Y0.55KW,EWFAF57-Y0.75KW,EWFAF57-Y1.1KW,EWFAF57-Y1.5KW,EWFAF57-Y100M4,EWFAF57-Y112M4,EWFAF57-Y132M4,EWFAF57-Y2.2KW,EWFAF57-Y3KW,EWFAF57-Y4KW,EWFAF57-Y5.5KW,EWFAF57-Y63M4,EWFAF57-Y71M4,EWFAF57-Y80M4,EWFAF57-Y90M4,EWFAF57-YEJ100M4,EWFAF57-YEJ112M4,EWFAF57-YEJ132M4,EWFAF57-YEJ63M4,EWFAF57-YEJ71M4,EWFAF57-YEJ80M4,EWFAF57-YEJ90M4,EWFAF57-YS100M4,EWFAF57-YS112M4,EWFAF57-YS132M4,EWFAF57-YS63M4,EWFAF57-YS71M4,EWFAF57-YS80M4,EWFAF57-YS90M4,EWFAF57-YVP100M4,EWFAF57-YVP112M4,EWFAF57-YVP132M4,EWFAF57-YVP63M4,EWFAF57-YVP71M4,EWFAF57-YVP80M4,EWFAF57-YVP90M4,EWFAF57-YVPEJ100M4,EWFAF57-YVPEJ112M4,EWFAF57-YVPEJ132M4,EWFAF57-YVPEJ63M4,EWFAF57-YVPEJ71M4,EWFAF57-YVPEJ80M4,EWFAF57-YVPEJ90M4,SLFAF57-Y0.12KW,SLFAF57-Y0.18KW,SLFAF57-Y0.25KW,SLFAF57-Y0.37KW,SLFAF57-Y0.55KW,SLFAF57-Y0.75KW,SLFAF57-Y1.1KW,SLFAF57-Y1.5KW,SLFAF57-Y100M4,SLFAF57-Y112M4,SLFAF57-Y132M4,SLFAF57-Y2.2KW,SLFAF57-Y3KW,SLFAF57-Y4KW,SLFAF57-Y5.5KW,SLFAF57-Y63M4,SLFAF57-Y71M4,SLFAF57-Y80M4,SLFAF57-Y90M4,SLFAF57-YEJ100M4,SLFAF57-YEJ112M4,SLFAF57-YEJ132M4,SLFAF57-YEJ63M4,SLFAF57-YEJ71M4,SLFAF57-YEJ80M4,SLFAF57-YEJ90M4,SLFAF57-YS100M4,SLFAF57-YS112M4,SLFAF57-YS132M4,SLFAF57-YS63M4,SLFAF57-YS71M4,SLFAF57-YS80M4,SLFAF57-YS90M4,SLFAF57-YVP100M4,SLFAF57-YVP112M4,SLFAF57-YVP132M4,SLFAF57-YVP63M4,SLFAF57-YVP71M4,SLFAF57-YVP80M4,SLFAF57-YVP90M4,SLFAF57-YVPEJ100M4,SLFAF57-YVPEJ112M4,SLFAF57-YVPEJ132M4,SLFAF57-YVPEJ63M4,SLFAF57-YVPEJ71M4,SLFAF57-YVPEJ80M4,SLFAF57-YVPEJ90M4,DSZFAF57-Y0.12KW,DSZFAF57-Y0.18KW,DSZFAF57-Y0.25KW,DSZFAF57-Y0.37KW,DSZFAF57-Y0.55KW,DSZFAF57-Y0.75KW,DSZFAF57-Y1.1KW,DSZFAF57-Y1.5KW,DSZFAF57-Y100M4,DSZFAF57-Y112M4,DSZFAF57-Y132M4,DSZFAF57-Y2.2KW,DSZFAF57-Y3KW,DSZFAF57-Y4KW,DSZFAF57-Y5.5KW,DSZFAF57-Y63M4,DSZFAF57-Y71M4,DSZFAF57-Y80M4,DSZFAF57-Y90M4,DSZFAF57-YEJ100M4,DSZFAF57-YEJ112M4,DSZFAF57-YEJ132M4,DSZFAF57-YEJ63M4,DSZFAF57-YEJ71M4,DSZFAF57-YEJ80M4,DSZFAF57-YEJ90M4,DSZFAF57-YS100M4,DSZFAF57-YS112M4,DSZFAF57-YS132M4,DSZFAF57-YS63M4,DSZFAF57-YS71M4,DSZFAF57-YS80M4,DSZFAF57-YS90M4,DSZFAF57-YVP100M4,DSZFAF57-YVP112M4,DSZFAF57-YVP132M4,DSZFAF57-YVP63M4,DSZFAF57-YVP71M4,DSZFAF57-YVP80M4,DSZFAF57-YVP90M4,DSZFAF57-YVPEJ100M4,DSZFAF57-YVPEJ112M4,DSZFAF57-YVPEJ132M4,DSZFAF57-YVPEJ63M4,DSZFAF57-YVPEJ71M4,DSZFAF57-YVPEJ80M4,DSZFAF57-YVPEJ90M4,BFAF57-Y0.12KW,BFAF57-Y0.18KW,BFAF57-Y0.25KW,BFAF57-Y0.37KW,BFAF57-Y0.55KW,BFAF57-Y0.75KW,BFAF57-Y1.1KW,BFAF57-Y1.5KW,BFAF57-Y100M4,BFAF57-Y112M4,BFAF57-Y132M4,BFAF57-Y2.2KW,BFAF57-Y3KW,BFAF57-Y4KW,BFAF57-Y5.5KW,BFAF57-Y63M4,BFAF57-Y71M4,BFAF57-Y80M4,BFAF57-Y90M4,BFAF57-YEJ100M4,BFAF57-YEJ112M4,BFAF57-YEJ132M4,BFAF57-YEJ63M4,BFAF57-YEJ71M4,BFAF57-YEJ80M4,BFAF57-YEJ90M4,BFAF57-YS100M4,BFAF57-YS112M4,BFAF57-YS132M4,BFAF57-YS63M4,BFAF57-YS71M4,BFAF57-YS80M4,BFAF57-YS90M4,BFAF57-YVP100M4,BFAF57-YVP112M4,BFAF57-YVP132M4,BFAF57-YVP63M4,BFAF57-YVP71M4,BFAF57-YVP80M4,BFAF57-YVP90M4,BFAF57-YVPEJ100M4,BFAF57-YVPEJ112M4,BFAF57-YVPEJ132M4,BFAF57-YVPEJ63M4,BFAF57-YVPEJ71M4,BFAF57-YVPEJ80M4,BFAF57-YVPEJ90M4,GFAF57-Y0.12KW,GFAF57-Y0.18KW,GFAF57-Y0.25KW,GFAF57-Y0.37KW,GFAF57-Y0.55KW,GFAF57-Y0.75KW,GFAF57-Y1.1KW,GFAF57-Y1.5KW,GFAF57-Y100M4,GFAF57-Y112M4,GFAF57-Y132M4,GFAF57-Y2.2KW,GFAF57-Y3KW,GFAF57-Y4KW,GFAF57-Y5.5KW,GFAF57-Y63M4,GFAF57-Y71M4,GFAF57-Y80M4,GFAF57-Y90M4,GFAF57-YEJ100M4,GFAF57-YEJ112M4,GFAF57-YEJ132M4,GFAF57-YEJ63M4,GFAF57-YEJ71M4,GFAF57-YEJ80M4,GFAF57-YEJ90M4,GFAF57-YS100M4,GFAF57-YS112M4,GFAF57-YS132M4,GFAF57-YS63M4,GFAF57-YS71M4,GFAF57-YS80M4,GFAF57-YS90M4,GFAF57-YVP100M4,GFAF57-YVP112M4,GFAF57-YVP132M4,GFAF57-YVP63M4,GFAF57-YVP71M4,GFAF57-YVP80M4,GFAF57-YVP90M4,GFAF57-YVPEJ100M4,GFAF57-YVPEJ112M4,GFAF57-YVPEJ132M4,GFAF57-YVPEJ63M4,GFAF57-YVPEJ71M4,GFAF57-YVPEJ80M4,GFAF57-YVPEJ90M4,FCAF57-Y0.12KW,FCAF57-Y0.18KW,FCAF57-Y0.25KW,FCAF57-Y0.37KW,FCAF57-Y0.55KW,FCAF57-Y0.75KW,FCAF57-Y1.1KW,FCAF57-Y1.5KW,FCAF57-Y100M4,FCAF57-Y112M4,FCAF57-Y132M4,FCAF57-Y2.2KW,FCAF57-Y3KW,FCAF57-Y4KW,FCAF57-Y5.5KW,FCAF57-Y63M4,FCAF57-Y71M4,FCAF57-Y80M4,FCAF57-Y90M4,FCAF57-YEJ100M4,FCAF57-YEJ112M4,FCAF57-YEJ132M4,FCAF57-YEJ63M4,FCAF57-YEJ71M4,FCAF57-YEJ80M4,FCAF57-YEJ90M4,FCAF57-YS100M4,FCAF57-YS112M4,FCAF57-YS132M4,FCAF57-YS63M4,FCAF57-YS71M4,FCAF57-YS80M4,FCAF57-YS90M4,FCAF57-YVP100M4,FCAF57-YVP112M4,FCAF57-YVP132M4,FCAF57-YVP63M4,FCAF57-YVP71M4,FCAF57-YVP80M4,FCAF57-YVP90M4,FCAF57-YVPEJ100M4,FCAF57-YVPEJ112M4,FCAF57-YVPEJ132M4,FCAF57-YVPEJ63M4,FCAF57-YVPEJ71M4,FCAF57-YVPEJ80M4,FCAF57-YVPEJ90M4,MTPAF57-Y0.12KW,MTPAF57-Y0.18KW,MTPAF57-Y0.25KW,MTPAF57-Y0.37KW,MTPAF57-Y0.55KW,MTPAF57-Y0.75KW,MTPAF57-Y1.1KW,MTPAF57-Y1.5KW,MTPAF57-Y100M4,MTPAF57-Y112M4,MTPAF57-Y132M4,MTPAF57-Y2.2KW,MTPAF57-Y3KW,MTPAF57-Y4KW,MTPAF57-Y5.5KW,MTPAF57-Y63M4,MTPAF57-Y71M4,MTPAF57-Y80M4,MTPAF57-Y90M4,MTPAF57-YEJ100M4,MTPAF57-YEJ112M4,MTPAF57-YEJ132M4,MTPAF57-YEJ63M4,MTPAF57-YEJ71M4,MTPAF57-YEJ80M4,MTPAF57-YEJ90M4,MTPAF57-YS100M4,MTPAF57-YS112M4,MTPAF57-YS132M4,MTPAF57-YS63M4,MTPAF57-YS71M4,MTPAF57-YS80M4,MTPAF57-YS90M4,MTPAF57-YVP100M4,MTPAF57-YVP112M4,MTPAF57-YVP132M4,MTPAF57-YVP63M4,MTPAF57-YVP71M4,MTPAF57-YVP80M4,MTPAF57-YVP90M4,MTPAF57-YVPEJ100M4,MTPAF57-YVPEJ112M4,MTPAF57-YVPEJ132M4,MTPAF57-YVPEJ63M4,MTPAF57-YVPEJ71M4,MTPAF57-YVPEJ80M4,MTPAF57-YVPEJ90M4,WXFAF57-WSS0.12KW,WXFAF57-WSS0.18KW,WXFAF57-WSS0.25KW,WXFAF57-WSS0.37KW,WXFAF57-WSS0.55KW,WXFAF57-WSS0.75KW,WXFAF57-WSS1.1KW,WXFAF57-WSS1.5KW,WXFAF57-WSS100M4,WXFAF57-WSS112M4,WXFAF57-WSS132M4,WXFAF57-WSS2.2KW,WXFAF57-WSS3KW,WXFAF57-WSS4KW,WXFAF57-WSS5.5KW,WXFAF57-WSS63M4,WXFAF57-WSS71M4,WXFAF57-WSS80M4,WXFAF57-WSS90M4,WXFAF57-WSSB100M4,WXFAF57-WSSB112M4,WXFAF57-WSSB132M4,WXFAF57-WSSB63M4,WXFAF57-WSSB71M4,WXFAF57-WSSB80M4,WXFAF57-WSSB90M4,WXFAF57-WSSVP100M4,WXFAF57-WSSVP112M4,WXFAF57-WSSVP132M4,WXFAF57-WSSVP63M4,WXFAF57-WSSVP71M4,WXFAF57-WSSVP80M4,WXFAF57-WSSVP90M4,WXFAF57-WSSVPB100M4,WXFAF57-WSSVPB112M4,WXFAF57-WSSVPB132M4,WXFAF57-WSSVPB63M4,WXFAF57-WSSVPB71M4,WXFAF57-WSSVPB80M4,WXFAF57-WSSVPB90M4。

FAF57減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://goto53.com/product/list-fafxiliejiansuji-cn.html

推薦類似型號：F57減速機
