FF27減速機重量：FF27減速機重量12公斤，F(xiàn)F27減速機帶電機重量分別如下

FF27減速機帶0.12KW電機重量17.5公斤，F(xiàn)F27減速機帶0.18KW電機重量18公斤，F(xiàn)F27減速機帶0.25KW電機重量22公斤，F(xiàn)F27減速機帶0.37KW電機重量22.5公斤，F(xiàn)F27減速機帶0.55KW電機重量27公斤，F(xiàn)F27減速機帶0.75KW電機重量28公斤，F(xiàn)F27減速機帶1.1KW電機重量32公斤，F(xiàn)F27減速機帶1.5KW電機重量35公斤，F(xiàn)F27減速機帶2.2KW電機重量44公斤。

FF27減速機加油量：可加合成油

FF27減速機M2方式安裝加0.8升，F(xiàn)F27減速機M1方式安裝加0.6升，F(xiàn)F27減速機M3方式安裝加0.65升，F(xiàn)F27減速機M4方式安裝加0.7升，F(xiàn)F27減速機M5方式安裝加0.6升，F(xiàn)F27減速機M6方式安裝加0.6升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整方式安裝時,您必須根據改變后的方式安裝相應調整加注潤滑劑。上述中列出了方式安裝M1-M6的減速機相應的標準參考潤滑油注入量值。

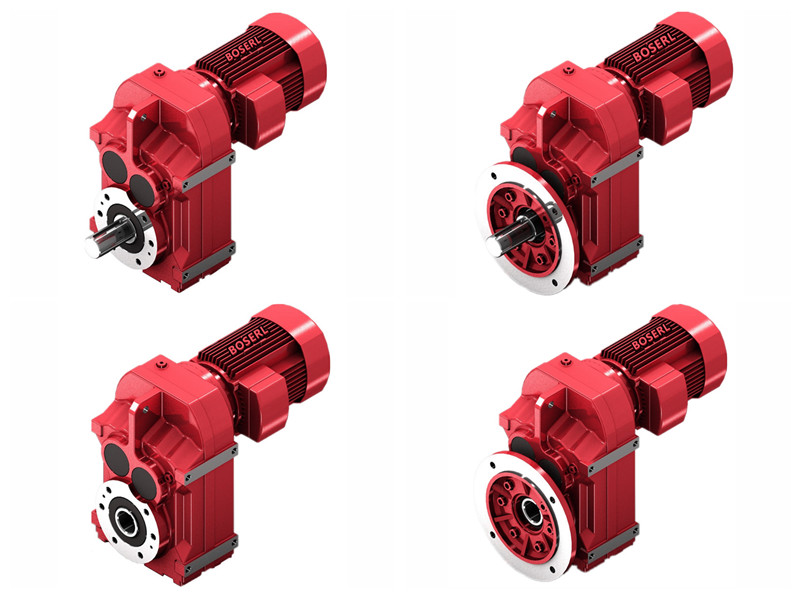

FF27減速機實物圖：圖一為FF27立式法蘭軸輸出平行軸斜齒輪減速機，圖二F27底腳方式安裝軸輸出平行軸減速機，圖三為FA27臥式孔輸出平行軸減速機，圖四為FAF27立式法蘭孔輸出平行軸斜齒輪減速機。

FF27減速機型號表示方法：

FF27減速機型號結構FF27-B1.1KW-4P-減速比-方式安裝-接線盒位置。

FF27減速機性能參數表結構說明：HF手動釋放裝置帶自鎖功能，F(xiàn)27、FF27、FA27、FAF27減速機機座號，HR手動釋放裝置，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FF27減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。剎車電機減速機

FF27減速機參數：

FF27減速機輸出轉數：9轉，11轉，13轉，15轉，16轉，18轉，19轉，22轉，25轉，28轉，30轉，34轉，37轉，41轉，47轉，52轉，60轉，69轉，74轉，86轉，101轉，113轉，133轉，142轉，149轉，172轉，203轉，227轉，266轉，284轉，337轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FF27減速機電機可帶直流、變頻、剎車、防爆、伺服、交流、三相、單相電機FF27帶0.12KW，F(xiàn)F27帶0.18KW，F(xiàn)F27帶0.25KW，F(xiàn)F27帶0.37KW，F(xiàn)F27帶0.55KW，F(xiàn)F27帶0.75KW，F(xiàn)F27帶1.1KW，F(xiàn)F27帶1.5KW，F(xiàn)F27帶2.2KW。

F27減速機減速比1:140，1:129，1:109，1:94，1:88，1:77，1:72，1:63，1:56，1:50，1:46，1:40，1:38，1:33，1:29，1:27，1:23，1:20，1:18，1:16，1:13，1:12，1:10，1:9，1:8，1:6，1:5，1:4。

FF27減速機輸出扭矩130N.m，123N.m，114N.m，109N.m，100N.m，96N.m，87N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

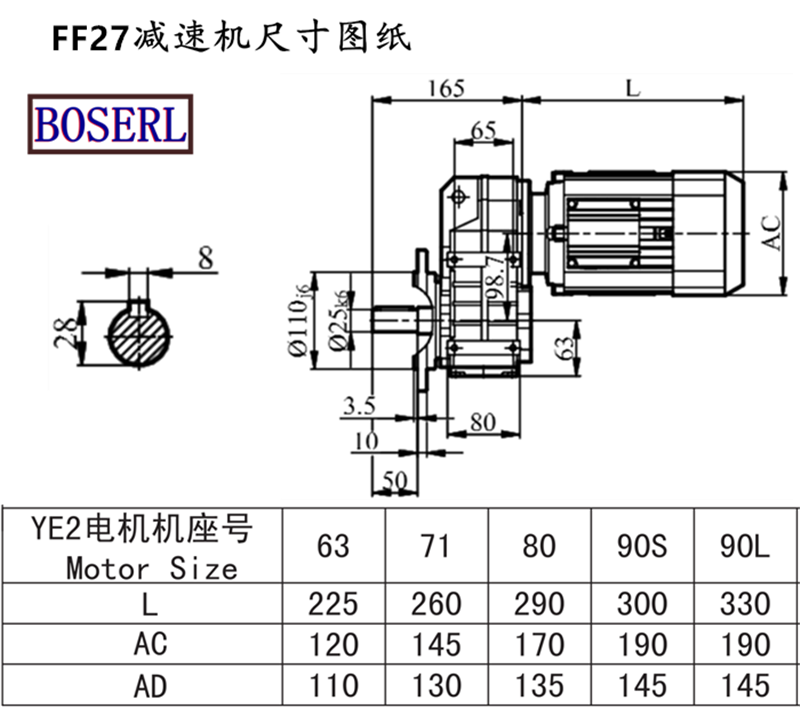

FF27減速機外形尺寸：輸出軸直徑Φ25+鍵3（可定做），高226*寬150*長165（帶輸出軸）平行軸斜齒輪減速機

FF27減速機型號：FF27AQA80,FF27AQA100,FF27AQA115,FF27AQA140,FF27AQA160,FF27AQA190,FF27AQH80,FF27AQH100,FF27AQH115,FF27AQH140,FF27AQH160,FF27AQH190,JRTFF27-Y0.12KW,JRTFF27-Y0.18KW,JRTFF27-Y0.25KW,JRTFF27-Y0.37KW,JRTFF27-Y0.55KW,JRTFF27-Y0.75KW,JRTFF27-Y1.1KW,JRTFF27-Y1.5KW,JRTFF27-Y100M4,JRTFF27-Y2.2KW,JRTFF27-Y63M4,JRTFF27-Y71M4,JRTFF27-Y80M4,JRTFF27-Y90M4,JRTFF27-YEJ100M4,JRTFF27-YEJ63M4,JRTFF27-YEJ71M4,JRTFF27-YEJ80M4,JRTFF27-YEJ90M4,JRTFF27-YS100M4,JRTFF27-YS63M4,JRTFF27-YS71M4,JRTFF27-YS80M4,JRTFF27-YS90M4,JRTFF27-YVP100M4,JRTFF27-YVP63M4,JRTFF27-YVP71M4,JRTFF27-YVP80M4,JRTFF27-YVP90M4,JRTFF27-YVPEJ100M4,JRTFF27-YVPEJ63M4,JRTFF27-YVPEJ71M4,JRTFF27-YVPEJ80M4,JRTFF27-YVPEJ90M4,EWFF27-Y0.12KW,EWFF27-Y0.18KW,EWFF27-Y0.25KW,EWFF27-Y0.37KW,EWFF27-Y0.55KW,EWFF27-Y0.75KW,EWFF27-Y1.1KW,EWFF27-Y1.5KW,EWFF27-Y100M4,EWFF27-Y2.2KW,EWFF27-Y63M4,EWFF27-Y71M4,EWFF27-Y80M4,EWFF27-Y90M4,EWFF27-YEJ100M4,EWFF27-YEJ63M4,EWFF27-YEJ71M4,EWFF27-YEJ80M4,EWFF27-YEJ90M4,EWFF27-YS100M4,EWFF27-YS63M4,EWFF27-YS71M4,EWFF27-YS80M4,EWFF27-YS90M4,EWFF27-YVP100M4,EWFF27-YVP63M4,EWFF27-YVP71M4,EWFF27-YVP80M4,EWFF27-YVP90M4,EWFF27-YVPEJ100M4,EWFF27-YVPEJ63M4,EWFF27-YVPEJ71M4,EWFF27-YVPEJ80M4,EWFF27-YVPEJ90M4,SLFF27-Y0.12KW,SLFF27-Y0.18KW,SLFF27-Y0.25KW,SLFF27-Y0.37KW,SLFF27-Y0.55KW,SLFF27-Y0.75KW,SLFF27-Y1.1KW,SLFF27-Y1.5KW,SLFF27-Y100M4,SLFF27-Y2.2KW,SLFF27-Y63M4,SLFF27-Y71M4,SLFF27-Y80M4,SLFF27-Y90M4,SLFF27-YEJ100M4,SLFF27-YEJ63M4,SLFF27-YEJ71M4,SLFF27-YEJ80M4,SLFF27-YEJ90M4,SLFF27-YS100M4,SLFF27-YS63M4,SLFF27-YS71M4,SLFF27-YS80M4,SLFF27-YS90M4,SLFF27-YVP100M4,SLFF27-YVP63M4,SLFF27-YVP71M4,SLFF27-YVP80M4,SLFF27-YVP90M4,SLFF27-YVPEJ100M4,SLFF27-YVPEJ63M4,SLFF27-YVPEJ71M4,SLFF27-YVPEJ80M4,SLFF27-YVPEJ90M4,DSZFF27-Y0.12KW,DSZFF27-Y0.18KW,DSZFF27-Y0.25KW,DSZFF27-Y0.37KW,DSZFF27-Y0.55KW,DSZFF27-Y0.75KW,DSZFF27-Y1.1KW,DSZFF27-Y1.5KW,DSZFF27-Y100M4,DSZFF27-Y2.2KW,DSZFF27-Y63M4,DSZFF27-Y71M4,DSZFF27-Y80M4,DSZFF27-Y90M4,DSZFF27-YEJ100M4,DSZFF27-YEJ63M4,DSZFF27-YEJ71M4,DSZFF27-YEJ80M4,DSZFF27-YEJ90M4,DSZFF27-YS100M4,DSZFF27-YS63M4,DSZFF27-YS71M4,DSZFF27-YS80M4,DSZFF27-YS90M4,DSZFF27-YVP100M4,DSZFF27-YVP63M4,DSZFF27-YVP71M4,DSZFF27-YVP80M4,DSZFF27-YVP90M4,DSZFF27-YVPEJ100M4,DSZFF27-YVPEJ63M4,DSZFF27-YVPEJ71M4,DSZFF27-YVPEJ80M4,DSZFF27-YVPEJ90M4,BFF27-Y0.12KW,BFF27-Y0.18KW,BFF27-Y0.25KW,BFF27-Y0.37KW,BFF27-Y0.55KW,BFF27-Y0.75KW,BFF27-Y1.1KW,BFF27-Y1.5KW,BFF27-Y100M4,BFF27-Y2.2KW,BFF27-Y63M4,BFF27-Y71M4,BFF27-Y80M4,BFF27-Y90M4,BFF27-YEJ100M4,BFF27-YEJ63M4,BFF27-YEJ71M4,BFF27-YEJ80M4,BFF27-YEJ90M4,BFF27-YS100M4,BFF27-YS63M4,BFF27-YS71M4,BFF27-YS80M4,BFF27-YS90M4,BFF27-YVP100M4,BFF27-YVP63M4,BFF27-YVP71M4,BFF27-YVP80M4,BFF27-YVP90M4,BFF27-YVPEJ100M4,BFF27-YVPEJ63M4,BFF27-YVPEJ71M4,BFF27-YVPEJ80M4,BFF27-YVPEJ90M4,GFF27-Y0.12KW,GFF27-Y0.18KW,GFF27-Y0.25KW,GFF27-Y0.37KW,GFF27-Y0.55KW,GFF27-Y0.75KW,GFF27-Y1.1KW,GFF27-Y1.5KW,GFF27-Y100M4,GFF27-Y2.2KW,GFF27-Y63M4,GFF27-Y71M4,GFF27-Y80M4,GFF27-Y90M4,GFF27-YEJ100M4,GFF27-YEJ63M4,GFF27-YEJ71M4,GFF27-YEJ80M4,GFF27-YEJ90M4,GFF27-YS100M4,GFF27-YS63M4,GFF27-YS71M4,GFF27-YS80M4,GFF27-YS90M4,GFF27-YVP100M4,GFF27-YVP63M4,GFF27-YVP71M4,GFF27-YVP80M4,GFF27-YVP90M4,GFF27-YVPEJ100M4,GFF27-YVPEJ63M4,GFF27-YVPEJ71M4,GFF27-YVPEJ80M4,GFF27-YVPEJ90M4,FCF27-Y0.12KW,FCF27-Y0.18KW,FCF27-Y0.25KW,FCF27-Y0.37KW,FCF27-Y0.55KW,FCF27-Y0.75KW,FCF27-Y1.1KW,FCF27-Y1.5KW,FCF27-Y100M4,FCF27-Y2.2KW,FCF27-Y63M4,FCF27-Y71M4,FCF27-Y80M4,FCF27-Y90M4,FCF27-YEJ100M4,FCF27-YEJ63M4,FCF27-YEJ71M4,FCF27-YEJ80M4,FCF27-YEJ90M4,FCF27-YS100M4,FCF27-YS63M4,FCF27-YS71M4,FCF27-YS80M4,FCF27-YS90M4,FCF27-YVP100M4,FCF27-YVP63M4,FCF27-YVP71M4,FCF27-YVP80M4,FCF27-YVP90M4,FCF27-YVPEJ100M4,FCF27-YVPEJ63M4,FCF27-YVPEJ71M4,FCF27-YVPEJ80M4,FCF27-YVPEJ90M4,MTPF27-Y0.12KW,MTPF27-Y0.18KW,MTPF27-Y0.25KW,MTPF27-Y0.37KW,MTPF27-Y0.55KW,MTPF27-Y0.75KW,MTPF27-Y1.1KW,MTPF27-Y1.5KW,MTPF27-Y100M4,MTPF27-Y2.2KW,MTPF27-Y63M4,MTPF27-Y71M4,MTPF27-Y80M4,MTPF27-Y90M4,MTPF27-YEJ100M4,MTPF27-YEJ63M4,MTPF27-YEJ71M4,MTPF27-YEJ80M4,MTPF27-YEJ90M4,MTPF27-YS100M4,MTPF27-YS63M4,MTPF27-YS71M4,MTPF27-YS80M4,MTPF27-YS90M4,MTPF27-YVP100M4,MTPF27-YVP63M4,MTPF27-YVP71M4,MTPF27-YVP80M4,MTPF27-YVP90M4,MTPF27-YVPEJ100M4,MTPF27-YVPEJ63M4,MTPF27-YVPEJ71M4,MTPF27-YVPEJ80M4,MTPF27-YVPEJ90M4,WXFF27-WSS0.12KW,WXFF27-WSS0.18KW,WXFF27-WSS0.25KW,WXFF27-WSS0.37KW,WXFF27-WSS0.55KW,WXFF27-WSS0.75KW,WXFF27-WSS1.1KW,WXFF27-WSS1.5KW,WXFF27-WSS100M4,WXFF27-WSS2.2KW,WXFF27-WSS63M4,WXFF27-WSS71M4,WXFF27-WSS80M4,WXFF27-WSS90M4,WXFF27-WSSB100M4,WXFF27-WSSB63M4,WXFF27-WSSB71M4,WXFF27-WSSB80M4,WXFF27-WSSB90M4,WXFF27-WSSVP100M4,WXFF27-WSSVP63M4,WXFF27-WSSVP71M4,WXFF27-WSSVP80M4,WXFF27-WSSVP90M4,WXFF27-WSSVPB100M4,WXFF27-WSSVPB63M4,WXFF27-WSSVPB71M4,WXFF27-WSSVPB80M4,WXFF27-WSSVPB90M4。

FF27減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://goto53.com/product/list-ffxiliejiansuji-cn.html
