KA77減速機重量：KA77減速機重量56公斤，KA77減速機與電機重量分別如下

KA77減速機與0.37KW電機重量66.5公斤，KA77減速機與0.55KW電機重量71公斤，KA77減速機與0.75KW電機重量72公斤，KA77減速機與1.1KW電機重量76公斤，KA77減速機與1.5KW電機重量79公斤，KA77減速機與2.2KW電機重量88公斤，KA77減速機與3KW電機重量91公斤，KA77減速機與4KW電機重量102公斤，KA77減速機與5.5KW電機重量116公斤，KA77減速機與7.5KW電機重量129公斤，KA77減速機與11KW電機重量171公斤。直角減速機

KA77減速機加油量：可加齒輪油

KA77減速機M3方式安裝加4.6L，KA77減速機M2方式安裝加4.1L，KA77減速機M1方式安裝加2.1L，KA77減速機M4方式安裝加6L，KA77減速機M5方式安裝加4.4L，KA77減速機M6方式安裝加4.4L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

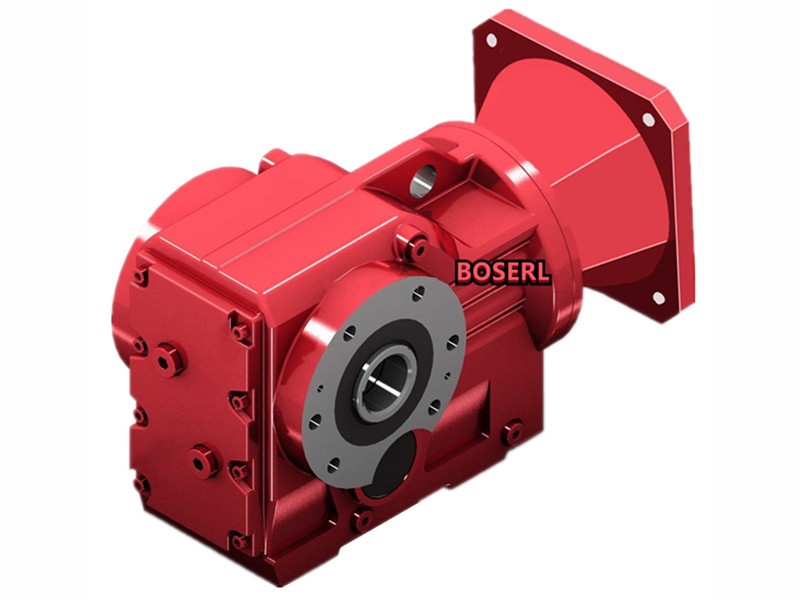

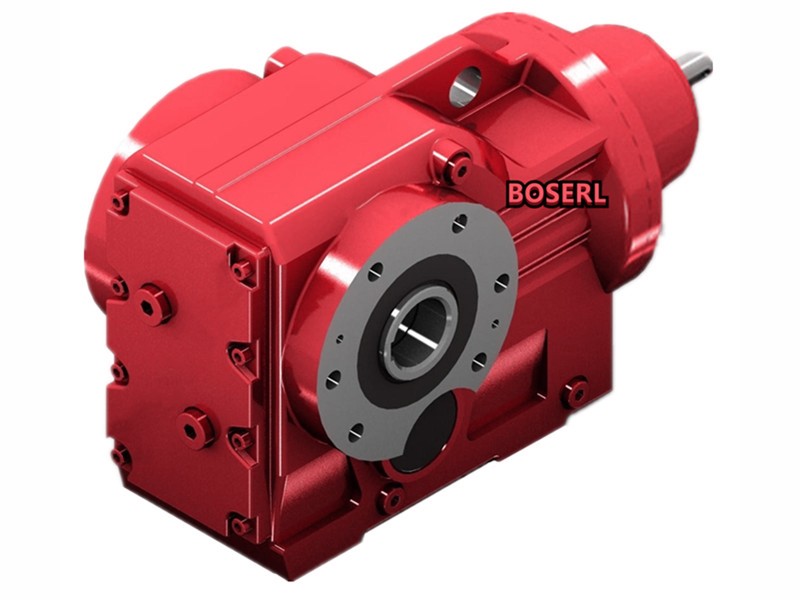

KA77減速機實物圖：圖一為KA77臥式方式安裝空心軸螺旋錐齒輪減速電機，圖二K77臥式方式安裝螺旋錐齒輪減速電機，圖三為KF77立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖四為KAF77立式方式安裝直角空心軸螺旋錐齒輪減速機。

KA77減速機型號表示方法：

KA77減速機型號結構KA77-B5.5KW-4P-減速比-安裝方式-接線盒位置。

KA77減速機性能參數表結構說明：C防雨罩，V強制冷卻風扇，RS逆止器，Input Configuration代表輸入與置，TF電機熱保護裝置，KA77，K77，KF77，KAF77減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置與自鎖功能。直角減速機

KA77減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KA77減速機參數：

KA77減速機減速比192.18比，179.37比，154.02比，135.28比，128.52比，113.56比，97.05比，88.97比，78.07比，73.99比，64.75比，58.34比，51.18比，45.16比，40.04比，38.39比，35.2比，30.89比，29.27比，25.62比，23.08比，20.25比，17.87比，15.84比，13.52比，12.36比，10.84比，9.56比，8.48比，7.24比

KA77減速機輸出扭矩1450N.m，1550N.m，1340N.m，1000N.m，990N.m，940N.m，890N.m，820N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KA77減速機電機可與單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KA77與0.37KW，KA77與0.55KW，KA77與0.75KW，KA77與1.1KW，KA77與1.5KW，KA77與2.2KW，KA77與3KW，KA77與4KW，KA77與5.5KW，KA77與7.5KW，KA77與11KW。

KA77減速機輸出轉數7.3轉，7.8轉，9.1轉，10轉，11轉，12轉，14轉，16轉，18轉，19轉，22轉，24轉，27轉，31轉，35轉，36轉，40轉，45轉，48轉，55轉，61轉，69轉，78轉，88轉，104轉，113轉，129轉，146轉，165轉，193轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

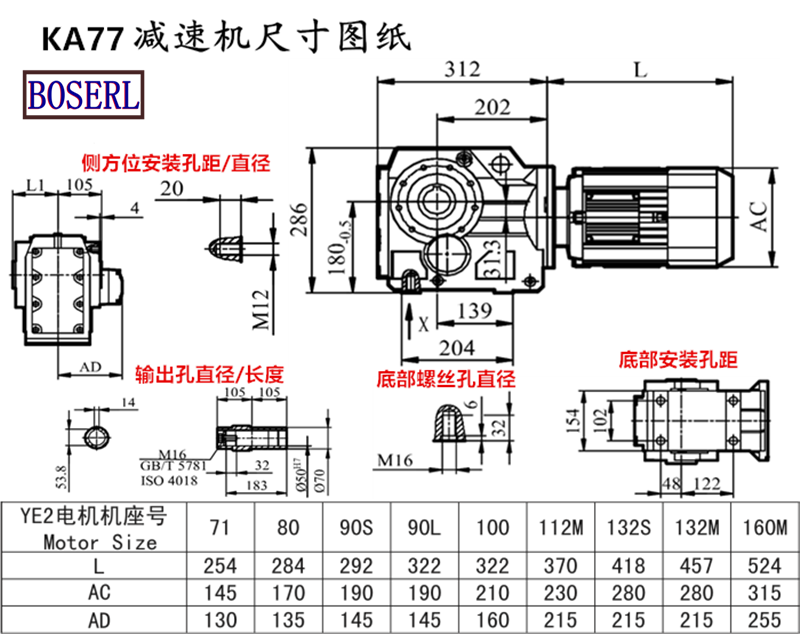

KA77減速機安裝尺寸：高286*寬200*長312

KA77減速機型號：KA77AQA80,KA77AQA100,KA77AQA115,KA77AQA140,KA77AQA160,KA77AQA190,KA77AQH80,KA77AQH100,KA77AQH115,KA77AQH140,KA77AQH160,KA77AQH190,JRTKA77-Y0.25KW,JRTKA77-Y0.37KW,JRTKA77-Y0.55KW,JRTKA77-Y0.75KW,JRTKA77-Y1.1KW,JRTKA77-Y1.5KW,JRTKA77-Y100M4,JRTKA77-Y112M4,JRTKA77-Y11KW,JRTKA77-Y132M4,JRTKA77-Y160M4,JRTKA77-Y2.2KW,JRTKA77-Y3KW,JRTKA77-Y4KW,JRTKA77-Y5.5KW,JRTKA77-Y7.5KW,JRTKA77-Y71M4,JRTKA77-Y80M4,JRTKA77-Y90M4,JRTKA77-YEJ100M4,JRTKA77-YEJ112M4,JRTKA77-YEJ132M4,JRTKA77-YEJ160M4,JRTKA77-YEJ71M4,JRTKA77-YEJ80M4,JRTKA77-YEJ90M4,JRTKA77-YS100M4,JRTKA77-YS112M4,JRTKA77-YS132M4,JRTKA77-YS160M4,JRTKA77-YS71M4,JRTKA77-YS80M4,JRTKA77-YS90M4,JRTKA77-YVP100M4,JRTKA77-YVP112M4,JRTKA77-YVP132M4,JRTKA77-YVP160M4,JRTKA77-YVP71M4,JRTKA77-YVP80M4,JRTKA77-YVP90M4,JRTKA77-YVPEJ100M4,JRTKA77-YVPEJ112M4,JRTKA77-YVPEJ132M4,JRTKA77-YVPEJ160M4,JRTKA77-YVPEJ71M4,JRTKA77-YVPEJ80M4,JRTKA77-YVPEJ90M4,EWKA77-Y0.25KW,EWKA77-Y0.37KW,EWKA77-Y0.55KW,EWKA77-Y0.75KW,EWKA77-Y1.1KW,EWKA77-Y1.5KW,EWKA77-Y100M4,EWKA77-Y112M4,EWKA77-Y11KW,EWKA77-Y132M4,EWKA77-Y160M4,EWKA77-Y2.2KW,EWKA77-Y3KW,EWKA77-Y4KW,EWKA77-Y5.5KW,EWKA77-Y7.5KW,EWKA77-Y71M4,EWKA77-Y80M4,EWKA77-Y90M4,EWKA77-YEJ100M4,EWKA77-YEJ112M4,EWKA77-YEJ132M4,EWKA77-YEJ160M4,EWKA77-YEJ71M4,EWKA77-YEJ80M4,EWKA77-YEJ90M4,EWKA77-YS100M4,EWKA77-YS112M4,EWKA77-YS132M4,EWKA77-YS160M4,EWKA77-YS71M4,EWKA77-YS80M4,EWKA77-YS90M4,EWKA77-YVP100M4,EWKA77-YVP112M4,EWKA77-YVP132M4,EWKA77-YVP160M4,EWKA77-YVP71M4,EWKA77-YVP80M4,EWKA77-YVP90M4,EWKA77-YVPEJ100M4,EWKA77-YVPEJ112M4,EWKA77-YVPEJ132M4,EWKA77-YVPEJ160M4,EWKA77-YVPEJ71M4,EWKA77-YVPEJ80M4,EWKA77-YVPEJ90M4,SLKA77-Y0.25KW,SLKA77-Y0.37KW,SLKA77-Y0.55KW,SLKA77-Y0.75KW,SLKA77-Y1.1KW,SLKA77-Y1.5KW,SLKA77-Y100M4,SLKA77-Y112M4,SLKA77-Y11KW,SLKA77-Y132M4,SLKA77-Y160M4,SLKA77-Y2.2KW,SLKA77-Y3KW,SLKA77-Y4KW,SLKA77-Y5.5KW,SLKA77-Y7.5KW,SLKA77-Y71M4,SLKA77-Y80M4,SLKA77-Y90M4,SLKA77-YEJ100M4,SLKA77-YEJ112M4,SLKA77-YEJ132M4,SLKA77-YEJ160M4,SLKA77-YEJ71M4,SLKA77-YEJ80M4,SLKA77-YEJ90M4,SLKA77-YS100M4,SLKA77-YS112M4,SLKA77-YS132M4,SLKA77-YS160M4,SLKA77-YS71M4,SLKA77-YS80M4,SLKA77-YS90M4,SLKA77-YVP100M4,SLKA77-YVP112M4,SLKA77-YVP132M4,SLKA77-YVP160M4,SLKA77-YVP71M4,SLKA77-YVP80M4,SLKA77-YVP90M4,SLKA77-YVPEJ100M4,SLKA77-YVPEJ112M4,SLKA77-YVPEJ132M4,SLKA77-YVPEJ160M4,SLKA77-YVPEJ71M4,SLKA77-YVPEJ80M4,SLKA77-YVPEJ90M4,DSZKA77-Y0.25KW,DSZKA77-Y0.37KW,DSZKA77-Y0.55KW,DSZKA77-Y0.75KW,DSZKA77-Y1.1KW,DSZKA77-Y1.5KW,DSZKA77-Y100M4,DSZKA77-Y112M4,DSZKA77-Y11KW,DSZKA77-Y132M4,DSZKA77-Y160M4,DSZKA77-Y2.2KW,DSZKA77-Y3KW,DSZKA77-Y4KW,DSZKA77-Y5.5KW,DSZKA77-Y7.5KW,DSZKA77-Y71M4,DSZKA77-Y80M4,DSZKA77-Y90M4,DSZKA77-YEJ100M4,DSZKA77-YEJ112M4,DSZKA77-YEJ132M4,DSZKA77-YEJ160M4,DSZKA77-YEJ71M4,DSZKA77-YEJ80M4,DSZKA77-YEJ90M4,DSZKA77-YS100M4,DSZKA77-YS112M4,DSZKA77-YS132M4,DSZKA77-YS160M4,DSZKA77-YS71M4,DSZKA77-YS80M4,DSZKA77-YS90M4,DSZKA77-YVP100M4,DSZKA77-YVP112M4,DSZKA77-YVP132M4,DSZKA77-YVP160M4,DSZKA77-YVP71M4,DSZKA77-YVP80M4,DSZKA77-YVP90M4,DSZKA77-YVPEJ100M4,DSZKA77-YVPEJ112M4,DSZKA77-YVPEJ132M4,DSZKA77-YVPEJ160M4,DSZKA77-YVPEJ71M4,DSZKA77-YVPEJ80M4,DSZKA77-YVPEJ90M4,BKA77-Y0.25KW,BKA77-Y0.37KW,BKA77-Y0.55KW,BKA77-Y0.75KW,BKA77-Y1.1KW,BKA77-Y1.5KW,BKA77-Y100M4,BKA77-Y112M4,BKA77-Y11KW,BKA77-Y132M4,BKA77-Y160M4,BKA77-Y2.2KW,BKA77-Y3KW,BKA77-Y4KW,BKA77-Y5.5KW,BKA77-Y7.5KW,BKA77-Y71M4,BKA77-Y80M4,BKA77-Y90M4,BKA77-YEJ100M4,BKA77-YEJ112M4,BKA77-YEJ132M4,BKA77-YEJ160M4,BKA77-YEJ71M4,BKA77-YEJ80M4,BKA77-YEJ90M4,BKA77-YS100M4,BKA77-YS112M4,BKA77-YS132M4,BKA77-YS160M4,BKA77-YS71M4,BKA77-YS80M4,BKA77-YS90M4,BKA77-YVP100M4,BKA77-YVP112M4,BKA77-YVP132M4,BKA77-YVP160M4,BKA77-YVP71M4,BKA77-YVP80M4,BKA77-YVP90M4,BKA77-YVPEJ100M4,BKA77-YVPEJ112M4,BKA77-YVPEJ132M4,BKA77-YVPEJ160M4,BKA77-YVPEJ71M4,BKA77-YVPEJ80M4,BKA77-YVPEJ90M4,GKA77-Y0.25KW,GKA77-Y0.37KW,GKA77-Y0.55KW,GKA77-Y0.75KW,GKA77-Y1.1KW,GKA77-Y1.5KW,GKA77-Y100M4,GKA77-Y112M4,GKA77-Y11KW,GKA77-Y132M4,GKA77-Y160M4,GKA77-Y2.2KW,GKA77-Y3KW,GKA77-Y4KW,GKA77-Y5.5KW,GKA77-Y7.5KW,GKA77-Y71M4,GKA77-Y80M4,GKA77-Y90M4,GKA77-YEJ100M4,GKA77-YEJ112M4,GKA77-YEJ132M4,GKA77-YEJ160M4,GKA77-YEJ71M4,GKA77-YEJ80M4,GKA77-YEJ90M4,GKA77-YS100M4,GKA77-YS112M4,GKA77-YS132M4,GKA77-YS160M4,GKA77-YS71M4,GKA77-YS80M4,GKA77-YS90M4,GKA77-YVP100M4,GKA77-YVP112M4,GKA77-YVP132M4,GKA77-YVP160M4,GKA77-YVP71M4,GKA77-YVP80M4,GKA77-YVP90M4,GKA77-YVPEJ100M4,GKA77-YVPEJ112M4,GKA77-YVPEJ132M4,GKA77-YVPEJ160M4,GKA77-YVPEJ71M4,GKA77-YVPEJ80M4,GKA77-YVPEJ90M4,KCA77-Y0.25KW,KCA77-Y0.37KW,KCA77-Y0.55KW,KCA77-Y0.75KW,KCA77-Y1.1KW,KCA77-Y1.5KW,KCA77-Y100M4,KCA77-Y112M4,KCA77-Y11KW,KCA77-Y132M4,KCA77-Y160M4,KCA77-Y2.2KW,KCA77-Y3KW,KCA77-Y4KW,KCA77-Y5.5KW,KCA77-Y7.5KW,KCA77-Y71M4,KCA77-Y80M4,KCA77-Y90M4,KCA77-YEJ100M4,KCA77-YEJ112M4,KCA77-YEJ132M4,KCA77-YEJ160M4,KCA77-YEJ71M4,KCA77-YEJ80M4,KCA77-YEJ90M4,KCA77-YS100M4,KCA77-YS112M4,KCA77-YS132M4,KCA77-YS160M4,KCA77-YS71M4,KCA77-YS80M4,KCA77-YS90M4,KCA77-YVP100M4,KCA77-YVP112M4,KCA77-YVP132M4,KCA77-YVP160M4,KCA77-YVP71M4,KCA77-YVP80M4,KCA77-YVP90M4,KCA77-YVPEJ100M4,KCA77-YVPEJ112M4,KCA77-YVPEJ132M4,KCA77-YVPEJ160M4,KCA77-YVPEJ71M4,KCA77-YVPEJ80M4,KCA77-YVPEJ90M4,MTJA77-Y0.25KW,MTJA77-Y0.37KW,MTJA77-Y0.55KW,MTJA77-Y0.75KW,MTJA77-Y1.1KW,MTJA77-Y1.5KW,MTJA77-Y100M4,MTJA77-Y112M4,MTJA77-Y11KW,MTJA77-Y132M4,MTJA77-Y160M4,MTJA77-Y2.2KW,MTJA77-Y3KW,MTJA77-Y4KW,MTJA77-Y5.5KW,MTJA77-Y7.5KW,MTJA77-Y71M4,MTJA77-Y80M4,MTJA77-Y90M4,MTJA77-YEJ100M4,MTJA77-YEJ112M4,MTJA77-YEJ132M4,MTJA77-YEJ160M4,MTJA77-YEJ71M4,MTJA77-YEJ80M4,MTJA77-YEJ90M4,MTJA77-YS100M4,MTJA77-YS112M4,MTJA77-YS132M4,MTJA77-YS160M4,MTJA77-YS71M4,MTJA77-YS80M4,MTJA77-YS90M4,MTJA77-YVP100M4,MTJA77-YVP112M4,MTJA77-YVP132M4,MTJA77-YVP160M4,MTJA77-YVP71M4,MTJA77-YVP80M4,MTJA77-YVP90M4,MTJA77-YVPEJ100M4,MTJA77-YVPEJ112M4,MTJA77-YVPEJ132M4,MTJA77-YVPEJ160M4,MTJA77-YVPEJ71M4,MTJA77-YVPEJ80M4,MTJA77-YVPEJ90M4,WXKA77-WSS0.25KW,WXKA77-WSS0.37KW,WXKA77-WSS0.55KW,WXKA77-WSS0.75KW,WXKA77-WSS1.1KW,WXKA77-WSS1.5KW,WXKA77-WSS100M4,WXKA77-WSS112M4,WXKA77-WSS11KW,WXKA77-WSS132M4,WXKA77-WSS160M4,WXKA77-WSS2.2KW,WXKA77-WSS3KW,WXKA77-WSS4KW,WXKA77-WSS5.5KW,WXKA77-WSS7.5KW,WXKA77-WSS71M4,WXKA77-WSS80M4,WXKA77-WSS90M4,WXKA77-WSSB100M4,WXKA77-WSSB112M4,WXKA77-WSSB132M4,WXKA77-WSSB160M4,WXKA77-WSSB71M4,WXKA77-WSSB80M4,WXKA77-WSSB90M4,WXKA77-WSSS100M4,WXKA77-WSSS112M4,WXKA77-WSSS132M4,WXKA77-WSSS160M4,WXKA77-WSSS71M4,WXKA77-WSSS80M4,WXKA77-WSSS90M4,WXKA77-WSSVP100M4,WXKA77-WSSVP112M4,WXKA77-WSSVP132M4,WXKA77-WSSVP160M4,WXKA77-WSSVP71M4,WXKA77-WSSVP80M4,WXKA77-WSSVP90M4,WXKA77-WSSVPB100M4,WXKA77-WSSVPB112M4,WXKA77-WSSVPB132M4,WXKA77-WSSVPB160M4,WXKA77-WSSVPB71M4,WXKA77-WSSVPB80M4,WXKA77-WSSVPB90M4。空心軸減速機

KA77減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://goto53.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K77減速機
